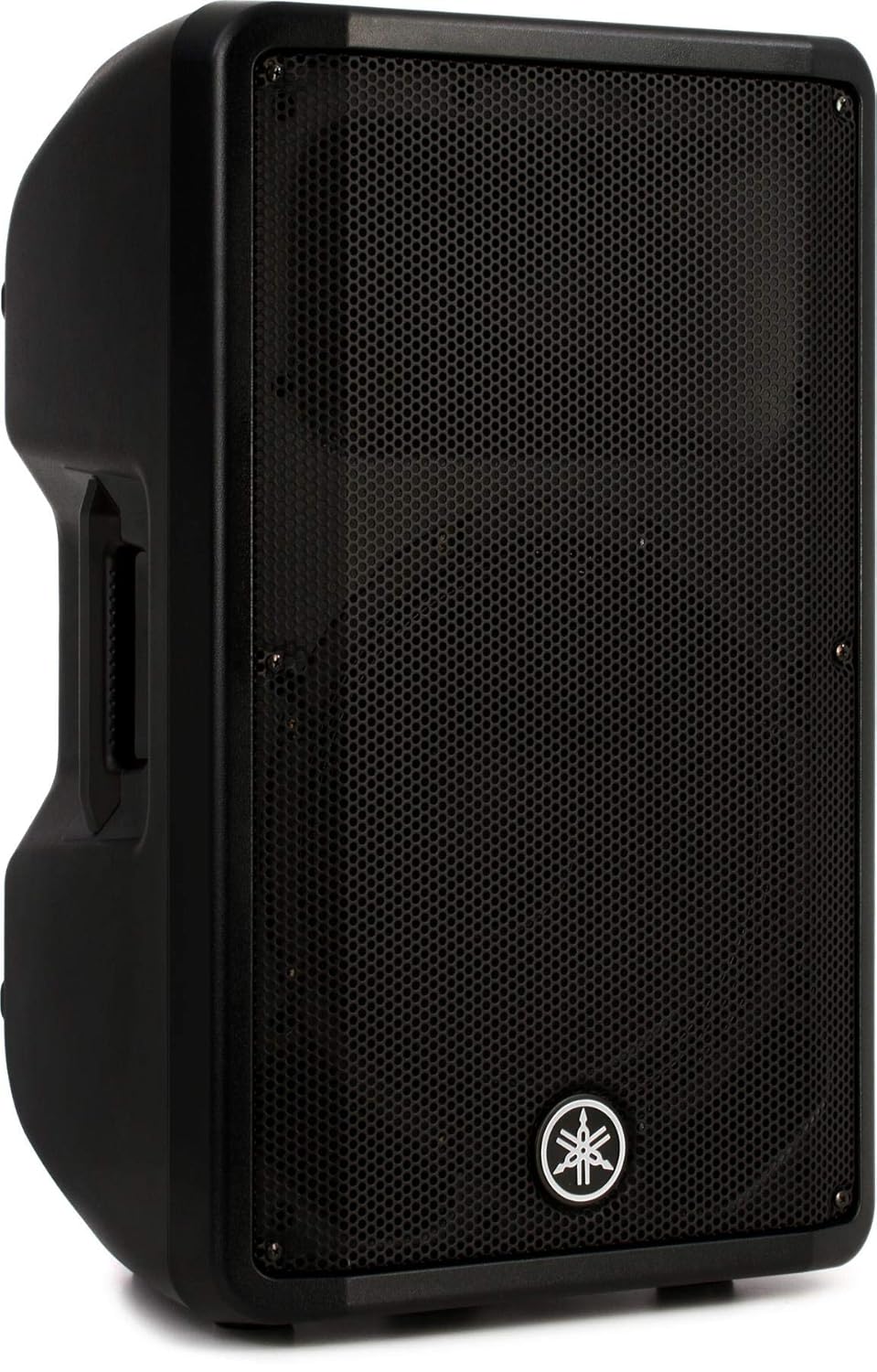

Yamaha DBR12 12-inch 1000W Powered PA Speaker with Auxiliary Input Black

Description

About the Product 🔑

	A Portable, High-performance PA Speaker from Yamaha Able to withstand a whopping 131dB SPL, the Yamaha DBR12 12″ active speaker gives you an accurate, controlled performance. Using the latest DSP, Yamaha applied their proprietary FIR-X tuning to optimize the sound and protection algorithms of the , providing you with plenty of muscle, despite this active rather diminutive size …
⭐	Get the Yamaha DBR12 12″ 2-Way Powered Loudspeaker direct from Yamaha. Guaranteed satisfaction and FREE shipping.
🔌	The DBR12 powered PA speaker uses a Class D amplifier that supplies up to 1000 watts of digital power, while the 12″ woofer and 1.4″ compression-driver tweeter turn all that power into dynamic sound. Yamaha houses the amp and speakers in a compact, lightweight portable cabinet that’s the most easily transported of all their .

Key Features 🔑

✨ 131dB SPL	High-performance PA Speaker
🔊 Dynamic Sound	12″ woofer and 1.4″ compression-driver tweeter
⚡ 1000 watts	Class D amplifier
📦 Compact & Lightweight	Easily transported cabinet
⚙️ FIR-X Tuning	Optimized sound and protection algorithms

Usage Instruction 🛠️

Step 1: 🔌 Connect the power cable.

Step 2: 💡 Power on the speaker.

Step 3: 🔊 Adjust volume and settings as needed.

Product Specification 📱

Speaker Type 🗣️	2-way, Bi-amp powered speaker, Bass-reflex type
Frequency Range 🎶	52Hz – 20kHz (-10dB)
Coverage Angle 📐	H: 90°, V: 60°
LF Component 🔊	12″ cone, Voice Coil: 2″, Magnet: Ferrite
HF Component 🎶	1.4″ diaphragm, 1″ throat compression driver, Magnet: Ferrite
Crossover Frequency 🎚️	2.1kHz: FIR-X tuning (linear phase FIR filter)
Output Power (Dynamic) ⚡	1000 W (LF: 800 W, HF: 200 W)
Output Power (Continuous) 🔌	465 W (LF: 400 W, HF: 65 W)
Max Output Level 🔊	131dB SPL (1m, on axis)
I/O Connectors 🔗	INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced)
Output Connector 📤	XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processor ⚙️	D-CONTOUR: FOH/MAIN, MONITOR, OFF
Cooling System 🌬️	Fan cooling, 4 speeds
Power Requirements 🔋	100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power Consumption 💡	74W (1/8 Power), 18W (Idle)
Cabinet Material 🛡️	Plastic
Finish 🎨	Black
Handles 👋	Side x 2
Mounting Hardware 🔩	Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole Socket 🕳️	35mm (Bottom x 1)
Mounting Type ⬆️	Floor Standing
Model Name 🏷️	DBR12
Speaker Type 🔊	Monitor
Compatible Devices 💻📱📺	Projector, Laptop, MP3 Player, Gaming Console, Desktop, Television, Tablet, Home Theater, Smartphone, Karaoke Machine
Subwoofer Diameter 📏	12 Inches
Colour 🖤	Black
Included Components 📦	1 unit Operating Manual, 1 unit Yamaha DBR12, Power Cable
Product Dimensions 📏	30D x 30W x 60H Centimeters
Item Weight ⚖️	2 Kilograms
Brand Name ⭐	YAMAHA
RMS Power Range ⚡	1000 Watts
Item Model Number 🔢	DBR12
Manufacturer 🏭	Yamaha
Country of Origin 🌎	Indonesia

Product Details 🏷️

ASIN 🆔	B00NIS8IZ0
Customer Reviews ⭐⭐⭐⭐	4.6 out of 5 stars (121 ratings)
Best Sellers Rank 📈	#6,030 in Musical Instruments, #6 in Monitors (Musical Instruments)
Date First Available 🗓️	25 September 2014
Manufacturer 🏭	Yamaha
Included Components 📦	1 unit Operating Manual, 1 unit Yamaha DBR12, Power Cable
Generic Name 🏷️	DBR12

Full Images

### Product Standout Benefits

Get ready to experience incredible sound with Yamaha’s DBR powered speaker systems! Designed for excellent sound quality, reliability, and portability, these speakers offer three affordable models that pack a serious punch.

* 🌟 **High Performance:** Enjoy a high-performance main or monitor speaker for all your audio needs.
* 🔥 **1000 Watts of Power:** Experience 1000 Watts of clean digital power for robust sound.
* 🔊 **Impressive Sound Pressure:** Achieve a maximum of 131 dB SPL for clear and powerful audio.
* 💡 **Optimized Sound:** Featuring the latest DSP and proprietary FIR-X tuning, these speakers deliver optimized sound and protection.
* 💪 **Accurate, Controlled Performance:** Bi-amped with separate amplifiers for woofer and high-frequency drivers ensures precise sound reproduction.
* ✨ **Natural Sound:** Acoustic components are specifically designed to take full advantage of the power amplifiers and DSP for a very natural sound, even at high levels.
* 🔄 **Versatile Setup:** Easily configure for use as a high-performance floor monitor or a great-sounding main speaker, making setup a snap.
* ✅ **Long-Life Assurance:** Backed by Yamaha’s 7-Year Warranty for peace of mind and a long life with great sound.

### 🤔 Customer Questions and Answers ❓💬

**Q: What makes this speaker so special?**
A: This DBR powered speaker system brings excellent sound quality, reliability, and portability. It uses the latest DSP and proprietary FIR-X tuning to optimize sound and has protection algorithms for class-leading maximum output power.

**Q: How do I set it up?**
A: Setting it up is a snap! You can easily configure it for use as a high-performance floor monitor or a great-sounding main speaker with a simple switch.

**Q: Is it built to last?**
A: Absolutely! Yamaha’s DBR series comes with a 7-Year Warranty, so you can be assured of a long life with great sound.

**Q: What kind of power can I expect?**
A: You get 1000 Watts of clean digital power, delivering a maximum of 131 dB SPL for impressive audio performance.

**Q: Is this speaker good for different uses?**
A: Yes, it’s a versatile speaker that can be used as a high-performance floor monitor or a great-sounding main speaker. It’s designed for excellent sound quality, reliability, and portability.

**Q: What’s the warranty like?**
A: You’ll get a 7-Year Warranty with this speaker, giving you confidence in its longevity and performance.
