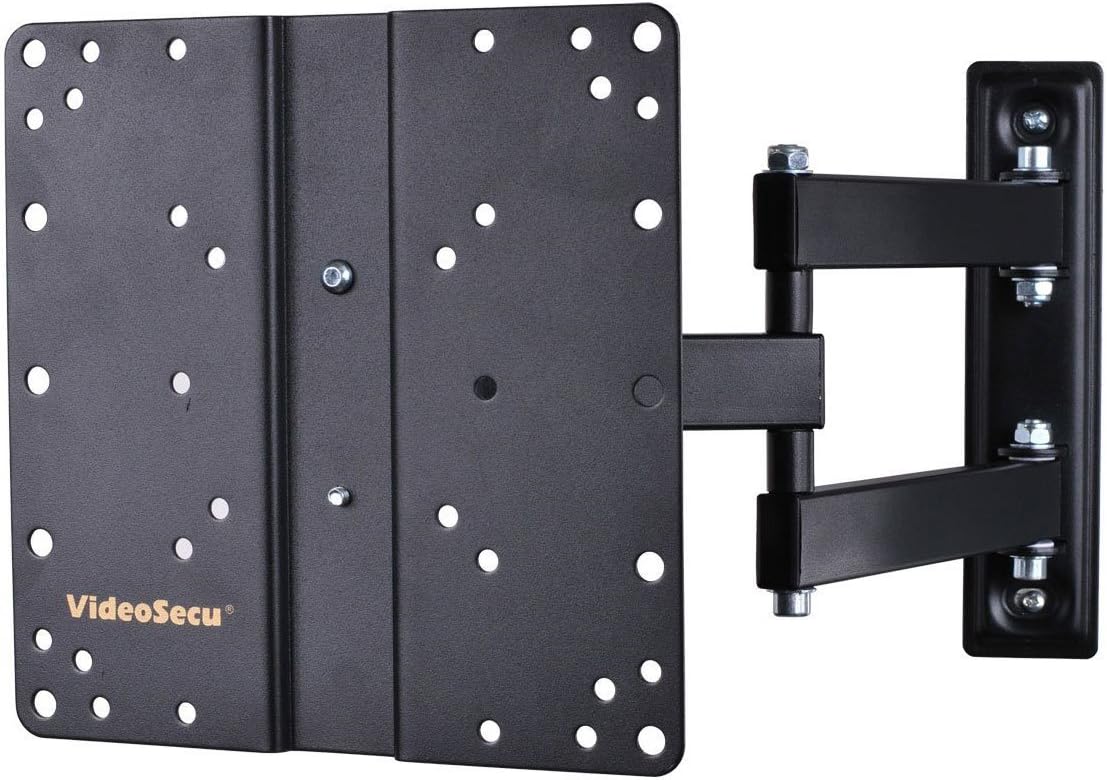

VideoSecu Articulating Tilt Swivel TV Wall Mount Black for 27-47 Inch LCD LED Flat Panel

Description

About the Product 🔑

Feature ⭐	Description ✅
Model	ML510B 🏷️
Type	Full motion mounting option 🔄
Profile	Low-profile, folds to 2″ from the wall 📏
Compatibility	Medium sized flat panel TVs 📺
VESA Patterns	75 x 75, 100 x 100, 200 x 100, 200 x 200 📐
Swivel	Up to 170 degrees ↔️
Tilt	15 degrees up or down ⬆️⬇️
Extension	2″-14″ extension 📏
Level Adjustment	Fine-tune placement for perfect level 📐
Construction	Durable steel construction 💪
Load Capacity	Supports loading capacity up to 44lbs 🏋️
Finish	Black powder coated finish 🖤
Installation	Removable TV plate for single-person installation 👍

Product Benefits 💡

• Affordable mounting option 💰
• Optimal viewing angle 👁️
• Easy adjustment for level screen 📐
• Maximum flexibility in positioning 🤸
• Convenient single-person installation 👍

Usage Instruction 🧾

1. Step 1: Mount the TV wall-mount plate to the wall using the provided hardware kit. 🔩
2. Step 2: Attach the removable TV plate to your flat panel TV. 📺
3. Step 3: Connect the TV plate to the mount arms and adjust for desired swivel, tilt, and extension. ↔️⬆️⬇️
4. Step 4: Fine-tune the level adjustment for a perfectly level screen. 📐

Product Specification 📱

Specification	Description
Model	ML510B 🏷️
Type	Full Motion Mount 🔄
TV Size Support	Most 27″ – 47″ LCD LED TVs 📺
VESA Mount Pattern	75×75, 100×100, 200×100, 200x200mm 📐
Max Load Capacity	44 lbs 💪
Extension from Wall	Up to 14″ 📏
Folded Distance from Wall	2″ 📏
Tilt	+/- 15 degrees ⬆️⬇️
Swivel	180 degrees ↔️
Roll Adjustment	Yes, for leveling 📐
Construction Material	Heavy gauge steel 🛡️
Color	Black ⚫
Included Hardware	Yes, for installation 📦

Product Details 🏷️

VideoSecu Articulating Tilt Swivel TV Wall Mount for Most 27-47″ LCD LED TV Flat Panel Black ML510B B65

• Heavy gauge steel construction support loading capacity up to 44 lbs 💪
• Full motion mount with tilting 15 degrees forward and backward, swiveling 180 degrees left and right ⬆️⬇️↔️

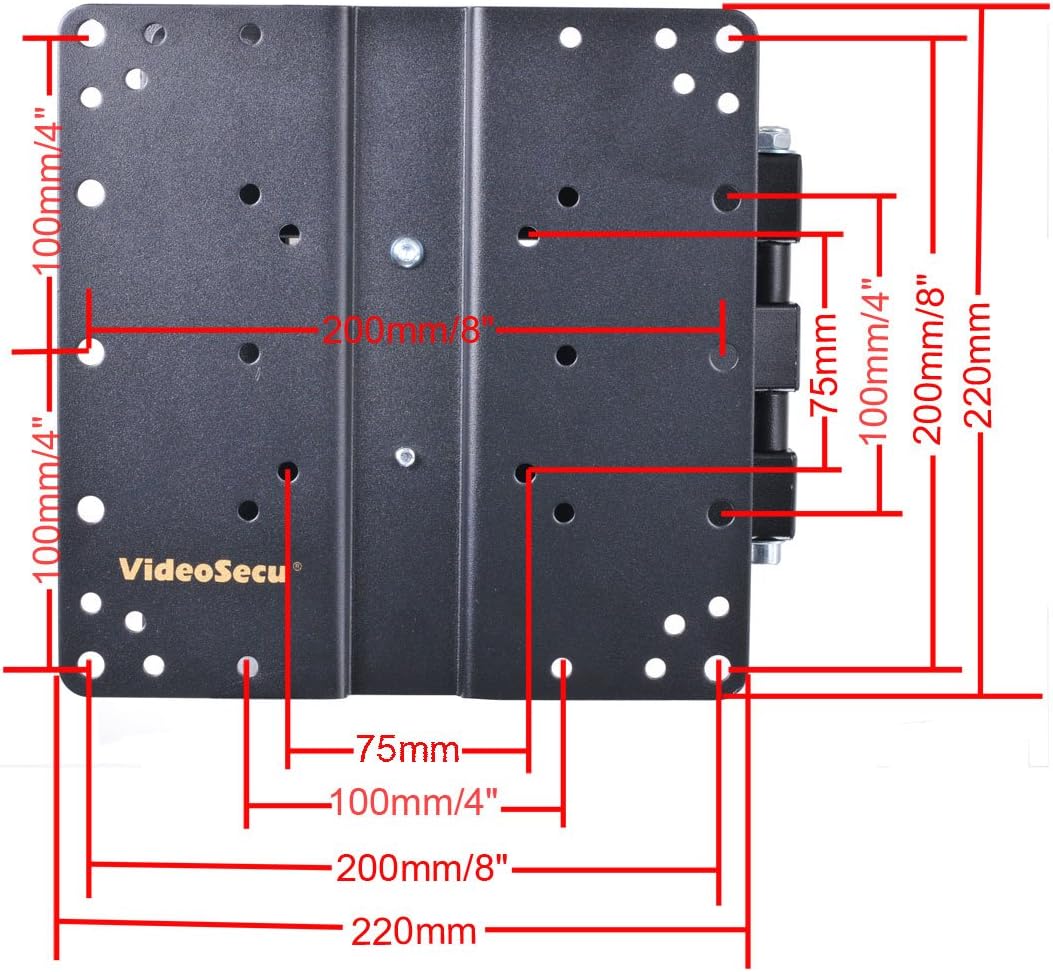

• Fits TV with VESA 75×75, 100×100, 200×100, 200x200mm 📐
• Post-installation level adjustment allows the TV to perfectly level 📐

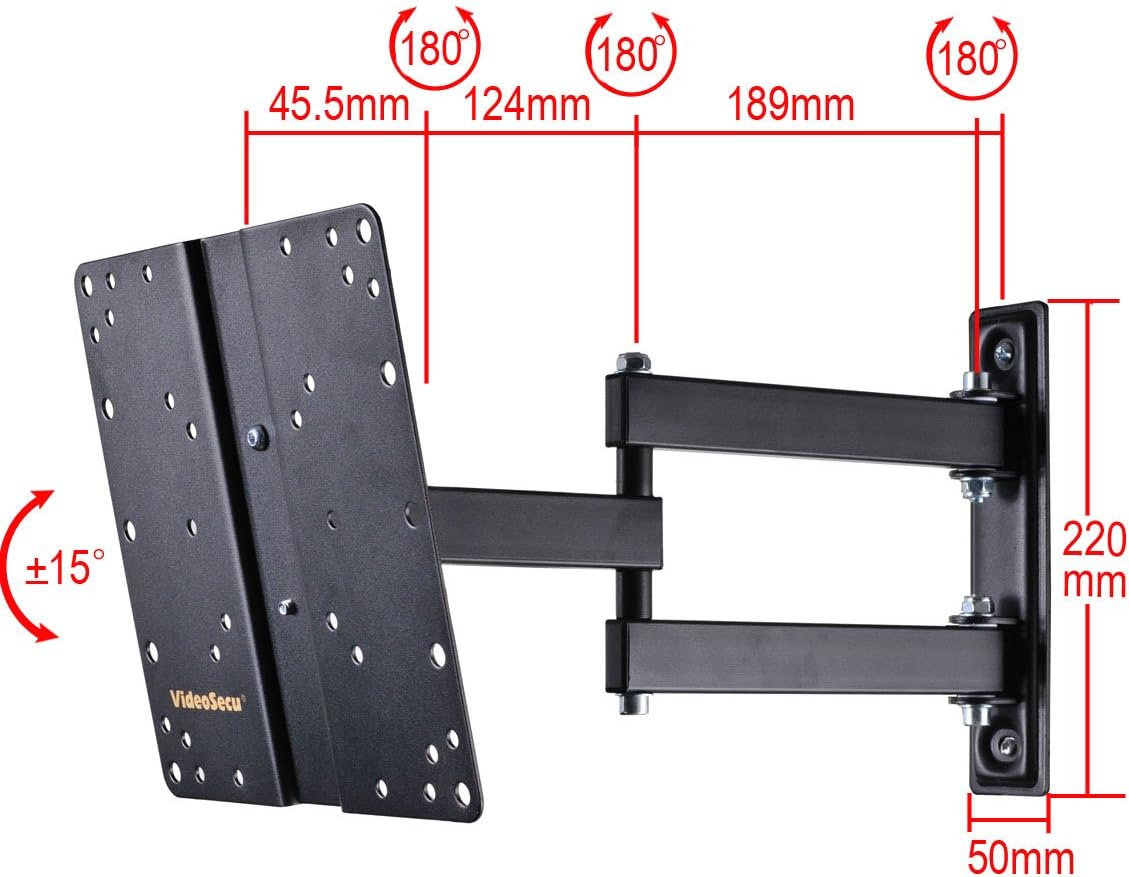

• Articulating swing arms extend TV up to 14″ from the wall and folds to 2″ from the wall 📏
• Removable TV plate designed for single-person installation, hardware kit included 👍🔩

Full Images

Product Standout Benefits

The VideoSecu ML510B offers a reliable and flexible mounting solution for your medium-sized flat panel TVs.

• Heavy gauge steel construction provides support for loading capacities up to 44 lbs.
• Full motion mount features tilting 15 degrees forward and backward, and swiveling 180 degrees left and right for optimal viewing angles.
• Fits TVs with VESA 75×75, 100×100, 200×100, and 200x200mm bolt patterns.
• Post-installation level adjustment ensures your TV is perfectly leveled.
• Articulating swing arms allow the TV to extend up to 14 inches from the wall and fold back to a slim 2 inches.
• The removable TV plate is designed for easy, single-person installation, with a hardware kit included.

Customer Questions and Answers

Got questions? We’ve got answers!

Q: What kind of TVs does this mount fit? 🤔

A: This mount is perfect for most 22-32″ TVs and some up to 37″ TVs made in the last 3 years. It fits TVs with VESA patterns like 200x200mm, 200x100mm, 100x100mm, and 75x75mm.

Q: How much weight can this mount hold? 🏋️

A: No worries, it’s built tough with heavy gauge steel construction and can support loading capacities up to 44 lbs!

Q: Can I adjust the TV’s position after mounting? 🛠️

A: Absolutely! It has a full motion mount with 15 degrees of tilt forward and backward, and 180 degrees of swivel left and right. Plus, there’s a post-installation level adjustment so you can get it perfectly straight.

Q: How close can the TV sit to the wall? 📏

A: It can extend out up to 14 inches from the wall for flexible viewing, and then folds back nicely to just 2 inches from the wall when you want it tucked away.

Q: Is it difficult to install by myself? 🙋

A: Not at all! The removable TV plate is designed for single-person installation, making it super convenient.
