50A Non-HF CNC Plasma Cutter Machine Dual Voltage 110V/220V 5/8″ Clean Cut 1″ Max Cut

Description

About the Product 🔑

Usage Instruction 🧾

• Step 1: 🔌 Connect the power cable to the plasma cutter.
• Step 2: 🌬️ Ensure dry and compressed air is connected.
• Step 3: 💡 Set the voltage to 110V or 220V as needed.
• Step 4: ⚙️ Adjust air pressure using the regulator to the recommended PSI.
• Step 5: 🔪 Select 2T or 4T mode for cutting.
• Step 6: ⚙️ Adjust pilot arc duration (PA function) if necessary.
• Step 7: Start cutting Iron, Steel, aluminum, or copper.

Product Specification 📱

Product Details 🏷️

• Plasma Cutter, [Blow Back Pilot Arc][Large LED][Air Sensor] 50A Non-HF CNC bestarc Plasma Cutter Machine 110V/220V Dual Voltage, 5/8″ Clean Cut 1″ Max Cut, Post Flow, 2T/4T for Beginners DIY
• [Powerful Cutting Ability] Dual voltage 110/220V good for home, workshop and hardware shop use. Professional performance 1/2”clean cuts on Iron, Steel aluminum and copper with Inverter IGBT technology. Very powerful for DIY and heavy duty project. The Maximum cutting thickness is recommended to 5/8”(16mm)@35A 110V 50PSI; 1”(26mm)@50A 220V 65PSI. Dry and compressed air is required. Power breaker up to 40A@110V 35A; Up to 30A@220V 50A.

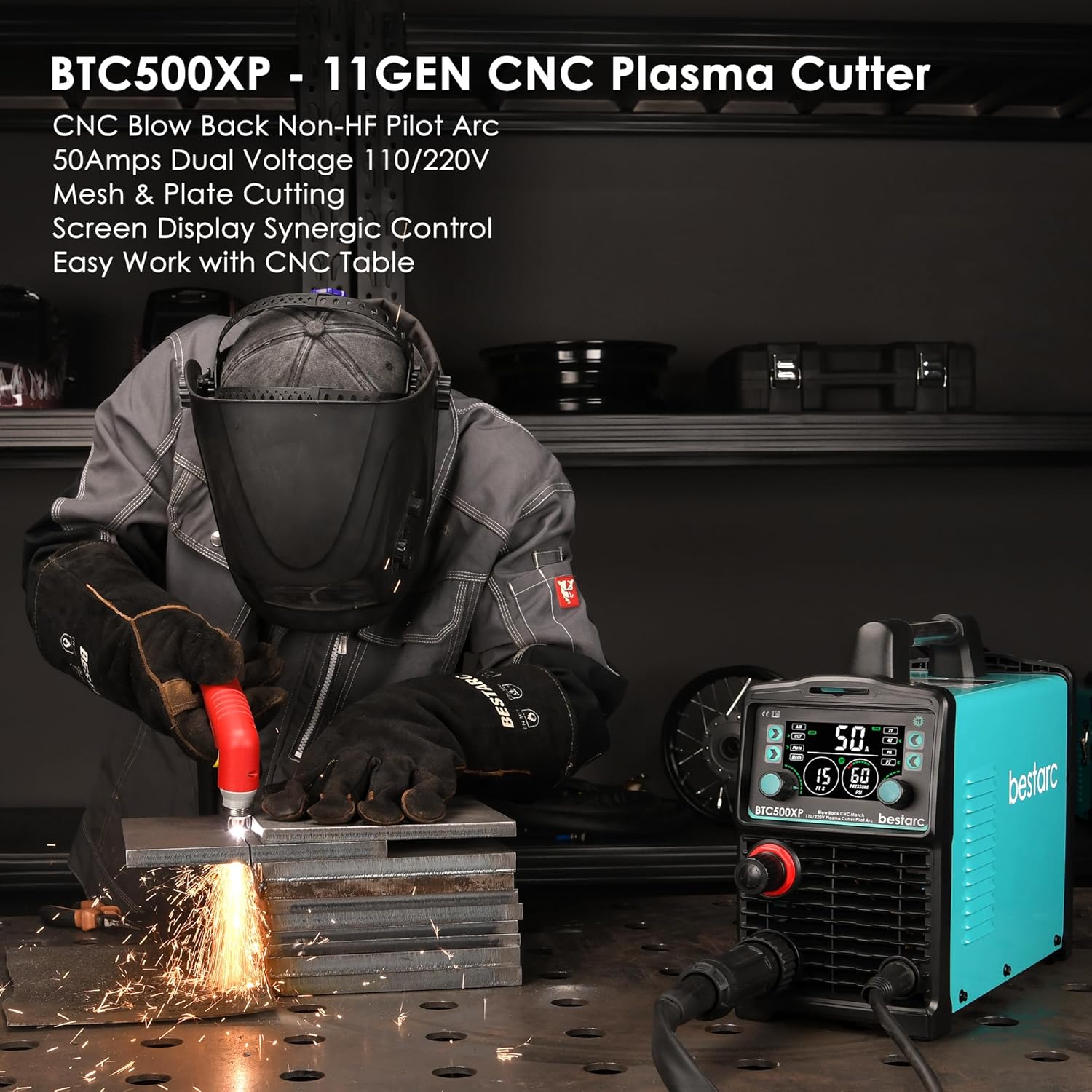

• [Blow Back Pilot Arc]: bestarc BTC500XP 11GEN plasma cutter features a blow back Technology, Non-HF pilot arc with CNC capability, Which prevents high-frequency signal interference and enhances cutting stability, blow back pilot arc non-touch the metal start the arc, plasma cutter machine has two connection ports: 2-pin connector for arc voltage output (1:1 ratio) and 5-pin connector for signal control. This design makes it easy to work with CNC cutting tables.
• [Air Sensor Technology]: The air sensor built in machine displays air pressure on front panel of the machine. Users can adjust the air pressure manually through the air regulator (air pressure cannot be automatically adjusted). Air filter is installed in the machine, equipped with a quick-connect 1/4 NPT air connector, ready for use right out of the box. Once connected to an air compressor, the recommended air pressure should be within 65 PSI, with a flow rate of 250 liters per minute. Note: The compressor needs to be purchased separately.
• [LED Screen Display]: The screen centrally displays parameters such as air pressure, voltage, and current, allowing users to understand the equipment status in real-time and adjust operations in a timely manner, improving operational efficiency. If the plasma cutter cannot work, the screen comes with an error code, making it easy to find out the problems.

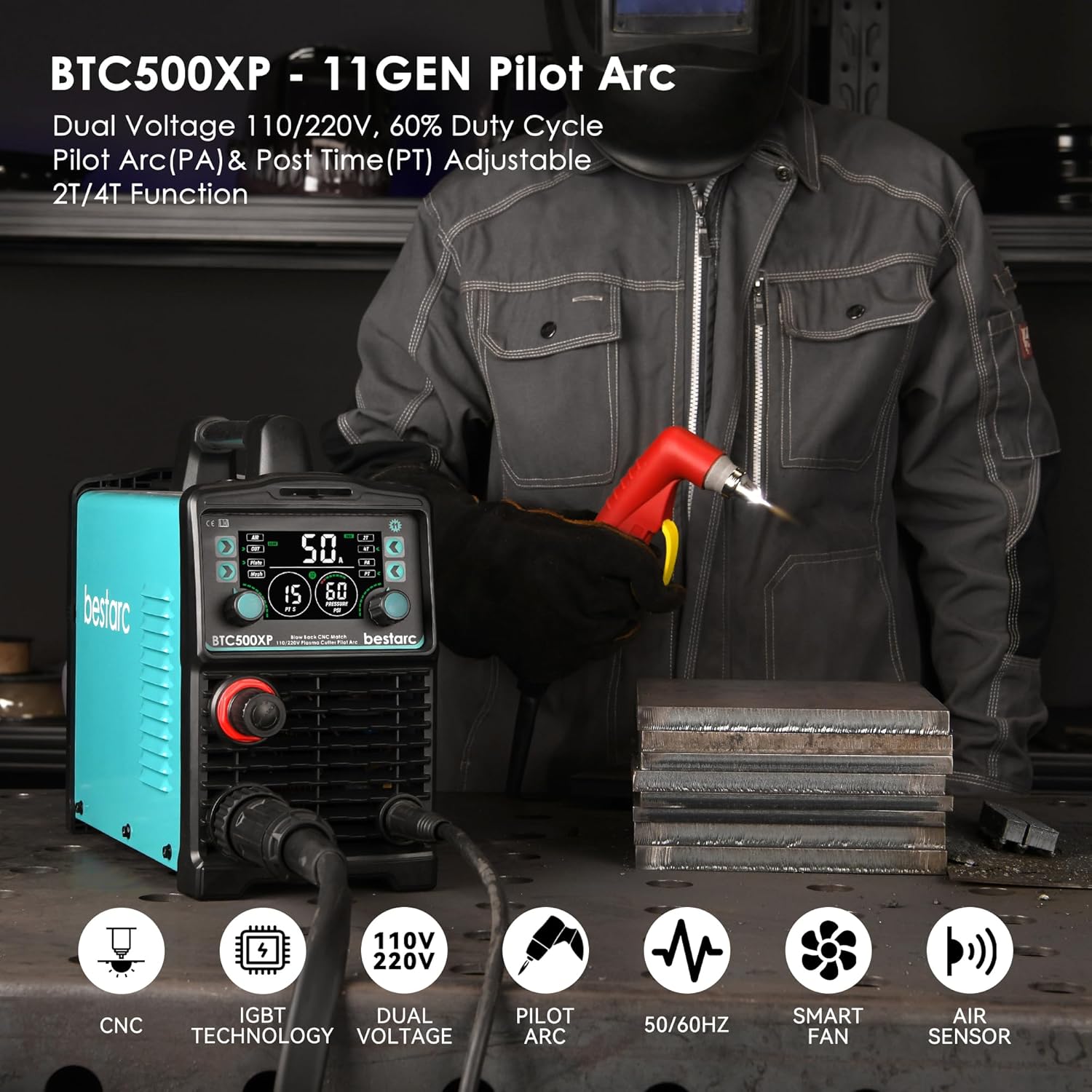

• [2T/4T/PA/PT Function]: Post time adjustable from 3-15s to cool the torch. Adjust the cooling time of the torch head to extend the service life of consumables. We recommend a cooling time of 4-8 seconds. The PA function allows pilot arc timing adjustment up to 15s; longer times are ideal for mesh cutting, shorter times help extend consumable life. 2T/4T automatic cutting release your finger.2T is a semi-automatic cutting control, and 4T is an automatic cutting control.

Full Images

Product Standout Benefits

This plasma cutter boasts professional performance with its powerful cutting ability, making it ideal for various applications.

• Dual voltage 110/220V, perfect for home, workshop, and hardware shop use.
• Achieve professional 1/2” clean cuts on Iron, Steel, Aluminum, and Copper with Inverter IGBT technology.
• Very powerful for DIY and heavy-duty projects.
• Recommended maximum cutting thickness: 5/8” (16mm) @ 35A 110V 50PSI; 1.18” (30mm) @ 50A 220V 65PSI.

The advanced Blow Back Pilot Arc technology ensures stability and ease of use, especially with CNC setups.

• Features a blow back Technology, Non-HF pilot arc with CNC capability.
• Prevents high-frequency signal interference and enhances cutting stability.
• Blow back pilot arc non-touch the metal to start the arc.
• Designed for easy integration with CNC cutting tables, featuring specific connector ports for arc voltage output and signal control.

With intelligent Air Sensor Technology, you can monitor and manage air pressure effectively.

• Built-in air sensor displays air pressure on the front panel.
• Users can manually adjust air pressure through the air regulator.
• Equipped with an air filter and a quick-connect 1/4 NPT air connector.
• Recommended air pressure: 70 PSI with a flow rate of 250 liters per minute when connected to an air compressor.

The user-friendly LED Screen Display provides real-time equipment status and error code information.

• Screen centrally displays parameters like air pressure, voltage, and current.
• Allows for real-time understanding of equipment status and timely adjustments.
• Displays error codes to easily identify problems if the cutter cannot work.

Benefit from the versatile 2T/4T/PA/PT Function for optimized cutting and extended tool life.

• Post time adjustable from 3-15s to cool the torch, extending consumable life.
• Recommended cooling time: 4-8 seconds.
• PA function allows pilot arc timing adjustment up to 15s, ideal for mesh cutting.
• 2T/4T automatic cutting offers semi-automatic (2T) or automatic (4T) cutting control.

Customer Questions and Answers

Q: How do I get started with this plasma cutter? 🤔

A: Setting it up is super easy, you can get ready to go within 1 minute! It’s designed to be portable and simple to use right out of the box.

Q: What kind of materials can I cut with this? 🌿

A: This powerful cutter can make clean cuts on Iron, Steel, Aluminum, and Copper. It’s really versatile for different projects!

Q: How thick can it cut? 📏

A: For a clean cut, we recommend up to 5/8” (16mm) at 35A on 110V with 50PSI. If you’re using 220V at 50A with 65PSI, you can cut up to 1.18” (30mm)!

Q: What about air pressure? How do I manage it? 💨

A: The machine has a handy air sensor that shows you the pressure on the front panel. You can adjust it manually with the air regulator. We suggest keeping it around 70 PSI with a flow rate of 250 liters per minute when connected to your air compressor.

Q: Is this good for CNC projects? 🔗

A: Absolutely! It features a non-HF pilot arc with CNC capability, and it has two connector ports specifically designed for easy integration with CNC cutting tables. It prevents high-frequency interference, making your cuts super stable.

Q: What does the 2T/4T/PA/PT function do? 💡

A: This function helps you optimize your cutting and keep your torch cool. You can adjust the post-time for cooling, and the PA function lets you adjust pilot arc timing, which is great for mesh cutting or extending consumable life. Plus, the 2T/4T options give you semi-automatic or automatic cutting control, so you don’t have to hold a button down the whole time!
