16MB Push Button Activated Sound Module with Speaker, Type-C, 16 Min Record, Blue 2-Pack

Description

About the Product 🔑

Feature ✨	Description 📝
Module Type 🔊	16MB Push Button Activated Sound Module with Speaker, Type-C Cable, and Easy Recording Capability
Recording Time ⏱️	16 Minutes
Applications 🎁	Personalized Greetings, DIY Projects, and Holiday Crafts
Color Option 🔵	Blue
Package Options 📦	Available in 1 PC and 2 Pack
Audio File Management 💻	Add new audio files to internal storage via USB-Type-C cable
Recording Function 🎙️	Long press button for 3 seconds to start recording, release to stop
Versatile Use 💡	DIY music recording module for personalized voice recording gifts, custom greeting cards, and unique music boxes
Adhesive Backing 👍	Self-adhesive on the back for easy pasting on gifts, cards, or boxes

Product Benefits 💡

• Personalize greeting cards and gifts with custom wishes.
• Create unique music boxes with personalized melodies.
• Add a special touch to DIY projects and holiday crafts.
• Effortlessly add new audio files via USB-Type-C connection.
• Simple recording and deletion of music files.

Usage Instruction 🛠️

1. Step 1: 🔌 Connect the module to a computer using a USB-Type-C cable to add or manage audio files.
2. Step 2: 🎙️ Long press the button for 3 seconds to start recording.
3. Step 3: ⏺️ Release the button to automatically stop recording.
4. Step 4: 🖱️ To personalize settings, connect to a computer, open “config.txt”, and adjust playback mode (PLAY=01-02) and volume (VOL=01-30).
5. Step 5: 🔗 For installation, peel off the adhesive sticker on the back and stick it onto your desired surface.

Product Specification 📱

Specification Name ⚙️	Description 📝
Storage Capacity 💾	16 MB
Recording Time ⏱️	Up to 16 minutes
Connectivity 🔌	USB-Type-C
Battery Type 🔋	Rechargeable 3.7 V (230 mAh)
Charging Time ⏳	Approx. 90 minutes
Playback Time 🎶	Approx. 120 minutes
Playback Modes 🎚️	Configurable via “config.txt” (e.g., interruptible, non-interruptible, hold cycle, loop, play/pause, play/stop)
Dimensions (inches) 📏	2.24 x 2.6 x 0.2
Item Weight (ounces) ⚖️	2.24
ASIN 🆔	B0C491SSSK
Model Number 🔢	JR1653-2Pack
Manufacturer 🏭	XLW
Batteries Required 🔋	1 Lithium Ion
Date First Available 🗓️	May 7, 2023

Product Details 🏷️

Product Description

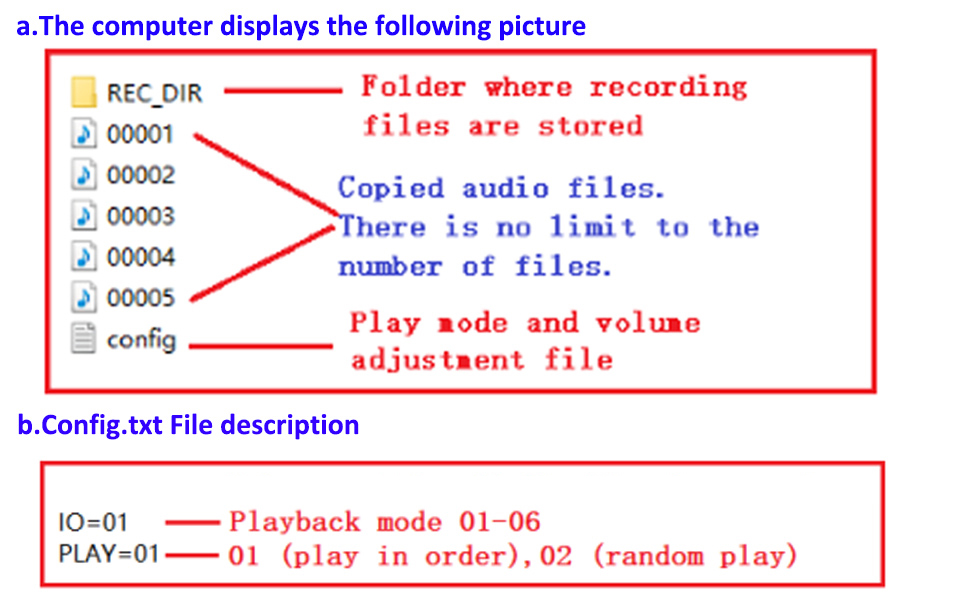

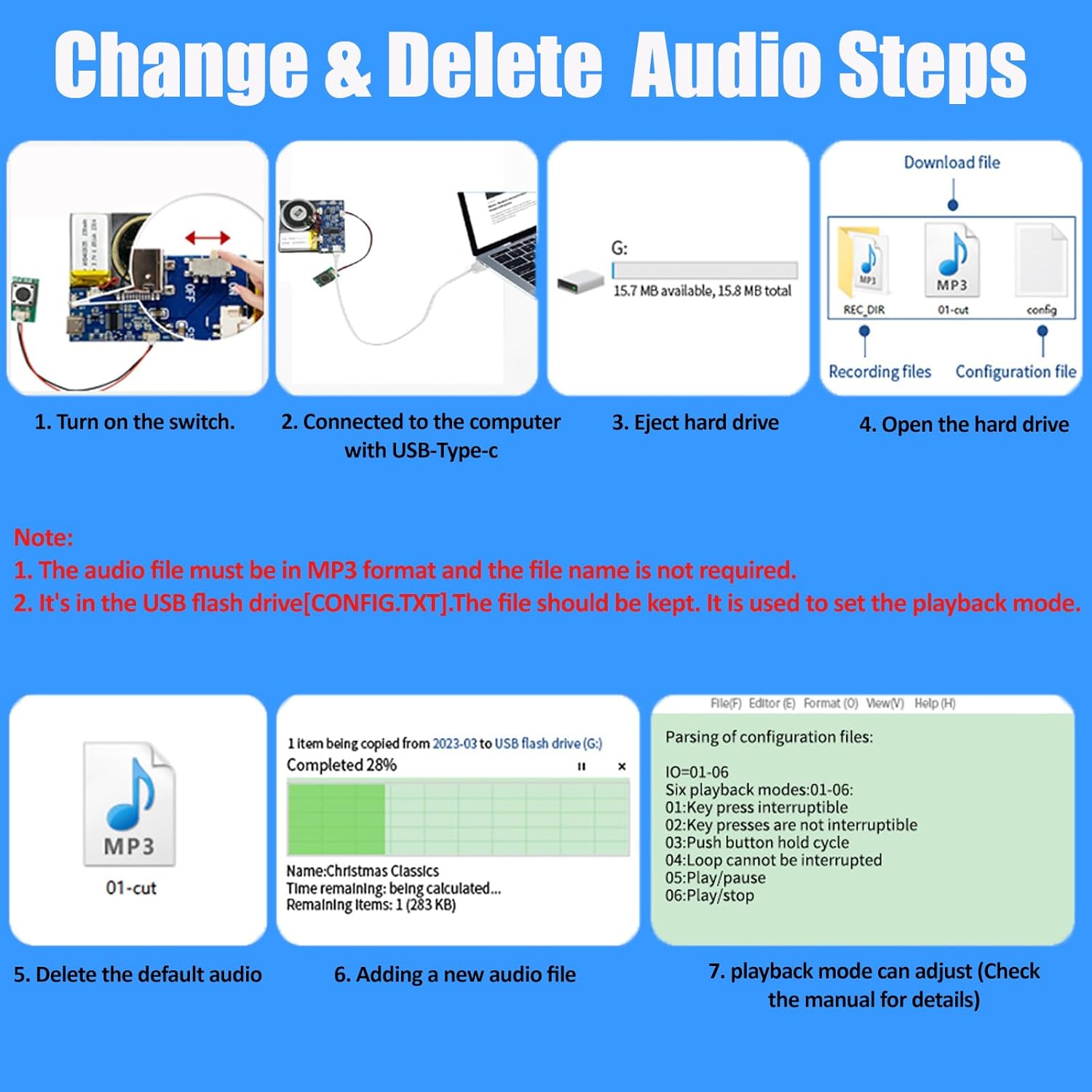

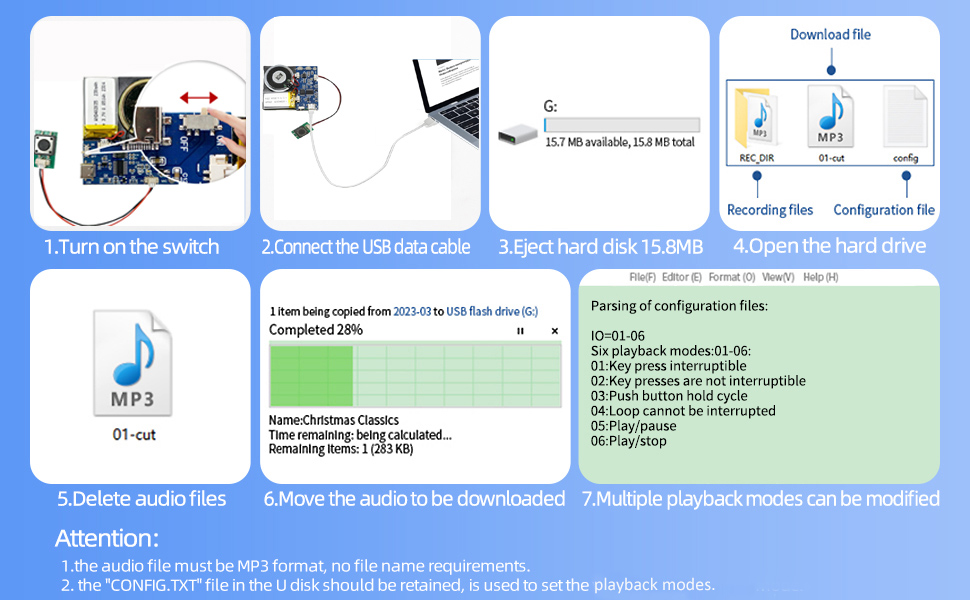

You can go to the computer to set the playback mode, there are six different modes of playback instructions tutorial: first turn on the switch – connect to the computer – pop up the hard drive – open the hard drive – click on the “config.txt” configuration file.

IO=01: Six playback modes: 01-06

• 01: Key press interruptible (Press to start playing, and during playback, press play again to play the next track.)
• 02: Key presses are not interruptible (Press once to start playback, during playback in the press invalid, the current song ends automatically transition to the next song.)
• 03: Push button hold cycle (Click the play button to loop the song, release the button to stop playing immediately.)
• 04: Loop cannot be interrupted (holding the button, play in a loop. After releasing the button, finish playing the current music and stop.)
• 05: Play, pause (Press once to play, press again to pause, and press again to resume from the paused point.)
• 06: Play, stop (Press once to play, and during playback, press again to stop play.)

16-Minute Recording Module: This 16-minute recording sound module is nice for personalizing greeting cards, music boxes, or other creative presents. Embed it in a greeting card to bring your wishes to life, place it in a music box to create a unique musical experience, or incorporate it into other creative presents to add a personalized touch. Whether you’re giving it to friends, family, or loved ones, it adds joy and surprise to your creative endeavors.

Download and Record and Delete Music: Long press the button for 3 seconds to start recording, and release the button to stop automatically. The maximum recording time is 16 minutes. Can download your own mp3 music, also record through MIC. You can connect to the computer to delete the built in music. Personalize your settings by adjusting the playback mode (PLAY=01-02) and volume (VOL=01-30) in the “config.txt” file. This allows you to achieve a personalized experience.

16 MB Storage Capacity: This sound module boasts a spacious 16MB memory, providing ample storage space to accommodate multiple favorite songs or recordings. By connecting the module to a computer using a USB-Type-C cable, you can effortlessly add new audio files to the internal storage. This opens up a world of possibilities for your creativity, allowing you to easily modify and update the stored audio content according to your preferences and needs.

USB Charging Recording Module: This recording module features a rechargeable design and is equipped with a big-capacity 3.7 V battery (230 mAh), fully charged takes approximately 90 minutes, played for about 120 minutes. It can be conveniently charged via the Micro USB-Type-C interface. This design extends the battery life, allowing for prolonged usage without the need for battery replacement. You can easily charge it by connecting it to a computer or using a charger, ensuring a full battery and enabling long-lasting usage with repeated charging cycles.

Easy Installation: Back of the sound module is equipped with adhesive stickers. You simply need to stick it onto the surface of your greeting card, present box, easter presents, 3D printed models or any other object, and it will securely attach to your creative creation. This way, you don’t need any additional tools or materials to easily combine the sound module with your present, bringing surprise and joy to the recipient. We have our own factory, Diverse style. Support customization. Welcome to email us!

Product Dimensions

2.24 x 2.6 x 0.2 inches

Item Weight

2.24 ounces

ASIN

B0C491SSSK

Item model number

JR1653-2Pack

Batteries

1 Lithium Ion batteries required.

Date First Available

May 7, 2023

Manufacturer

XLW

Warranty & Support

Product Warranty: For warranty information about this product, please click here

Full Images

Product Standout Benefits

This 16-minute recording sound module is perfect for adding a personal touch to all sorts of creative projects. Whether you’re making greeting cards, music boxes, or other unique gifts, this module lets you embed your special messages or sounds.

• Personalized Gifts: Embed it in a greeting card to bring your wishes to life, place it in a music box to create a unique musical experience, or incorporate it into other creative presents to add a personalized touch.
• Download and Record: You can download your own mp3 music or record through the MIC. The maximum recording time is 16 minutes.
• Ample Storage: This sound module boasts a spacious 16MB memory, providing ample storage space to accommodate multiple favorite songs or recordings.
• Rechargeable Design: Equipped with a big-capacity 3.7 V battery (230 mAh), fully charged takes approximately 90 minutes and plays for about 120 minutes. It can be conveniently charged via the Micro USB-Type-C interface.
• Easy Installation: Back of the sound module is equipped with adhesive stickers. Simply stick it onto the surface of your greeting card, present box, or any other object, and it will securely attach to your creation.

Customer Questions and Answers

Q: How do I use this product? 🤔
A: To record, just long press the button for 3 seconds to start and release to stop. You can also download your own mp3 music or record through the MIC. You can connect it to a computer to delete built-in music. Plus, you can personalize your settings by adjusting the playback mode and volume in the “config.txt” file.

Q: How much can I record? 🎤
A: You’ve got up to 16 minutes of recording time!

Q: Can I add my own music? 🎶
A: Totally! You can download your own mp3 music onto the module.

Q: How do I add more music or recordings? 📂
A: You can add new audio files to the internal storage by connecting the module to a computer using a USB-Type-C cable. This makes it super easy to update the stored audio content whenever you want!

Q: How long does the battery last? 🔋
A: The module has a 230 mAh battery. It takes about 90 minutes to fully charge and will play for about 120 minutes.

Q: How do I charge it? 🔌
A: It’s super easy! You can charge it via the Micro USB-Type-C interface. Just connect it to a computer or use a charger.

Q: Is it easy to put into my project? 🛠️
A: Yep! The back has adhesive stickers, so you can just stick it onto your greeting card, gift box, or whatever you’re creating. No extra tools needed!

Q: Can I customize the playback? 🔊
A: You bet! You can personalize your settings by adjusting the playback mode (PLAY=01-02) and volume (VOL=01-30) in the “config.txt” file.
